Odor Control System for Kitchen & Organic Waste

Odor Control System for Kitchen & Organic Waste

This odor control system is specifically designed for facilities that handle wet kitchen waste or organic food waste, which generate high concentrations of ammonia (NH₃), hydrogen sulfide (H₂S), volatile organic compounds (VOCs), and other malodorous gases during collection, sorting, grinding, and fermentation.


Availability:



Inquire

Odor Control System Odor Control System for Kitchen & Organic Waste Deodorization System for Wet Food Waste Treatment Facility Kitchen Waste Odor Control System Organic Waste Deodorization Equipment

Detail Information

Core Advantages

Process Flow

Place Of Origin:	CHINA
Processing Capacity:	1200~30000 M3/H
Supply Ability:	50 Sets Per 3 Months
Material:	PP/FRP
Purifying Rate:	>90%
Packaging Details:	Pallets
Highlight:	Purification Tower 30000 M3/H

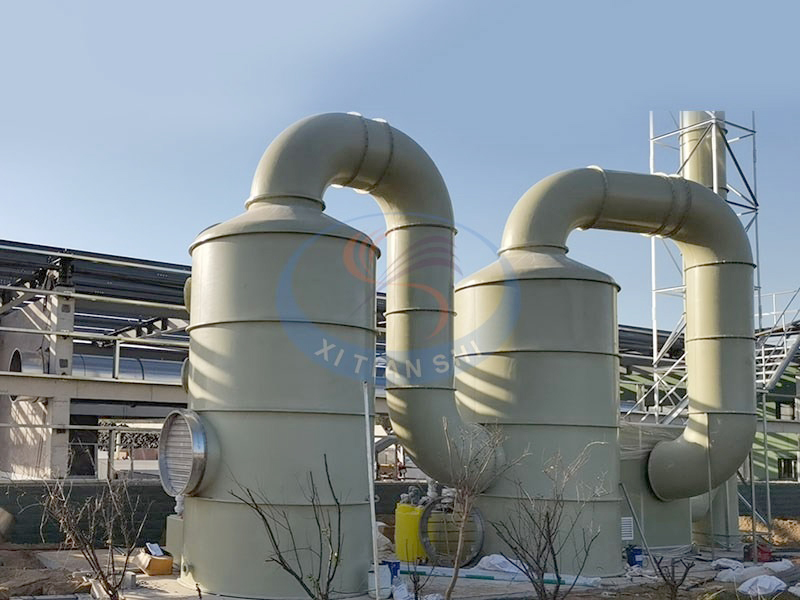

The system adopts a multi-stage purification structure, typically consisting of:

Acid-Alkali Wet Scrubber – Neutralizes acidic and basic gases
Biological Filter – Uses microorganisms to degrade odor molecules naturally
Activated Carbon Adsorption Unit – Captures remaining VOCs and fine odor particles
Optional UV Photolysis or Plasma Modules for enhanced deodorization efficiency

Key Advantages:

Odor removal efficiency ≥95%
Suitable for high-humidity, high-corrosion environments
Modular and scalable design
Low maintenance, long service life
Compliant with national and international emission standards

Applications:

Food waste transfer stations
Organic waste pretreatment centers
Urban kitchen waste collection points
Biogas and composting plants
Municipal solid waste facilities

1. Description of Deodorization System for Kitchen Waste

Odor Control System for Kitchen & Organic Waste

Number	Item	Material	Remarks
1	The maintenance port	PP/PVC	can be used as a viewing window
2	Spray port	PP/PVC
3	tower body	PP
4	filler inlet and outlet	PP/PVC	can be used as a viewing window
C	water inlet	PP
6	reservoir	PP
7	overflow port	PP
8	circulating water outlet	PP
9	sewage outlet	PP
10	air inlet	PP

2. Main product models

Model	Blowing rate M3/H	φ	φ1	φ2	H1	H	Purifying rate >90%	Recommended water pump
XTS-500	1200	500	200	800	1200	3500	>90%	25FP-8
XTS-600	2000	600	200	1000	1200	3500	>90%	25FP-8
XTS-700	3000	700	300	1000	1400	4000	>90%	32FP-11
XTS-800	4000	800	300	1200	1400	4000	>90%	32FP-11
XTS-1000	5000	1000	400	1400	1400	4500	>90%	40FP-18
XTS-1200	6000	1200	450	1600	1600	4500	>90%	40FP-18
XTS-1400	8000	1400	500	1800	1600	5000	>90%	50FP-22
XTS-1600	10000	1600	600	2000	1800	5000	>90%	50FP-22
XTS-1800	15000	1800	700	2200	2000	5500	>90%	50FP-22
XTS-2000	20000	2400	800	2400	2200	5500	>90%	65FP-26
XTS-2200	25000	2600	1000	2600	2500	6000	>90%	65FP-26
XTS-2500	30000	2800	1000	2800	2500	6000	>90%	65FP-26

3. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

4. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem

Any doubt please contact us.
