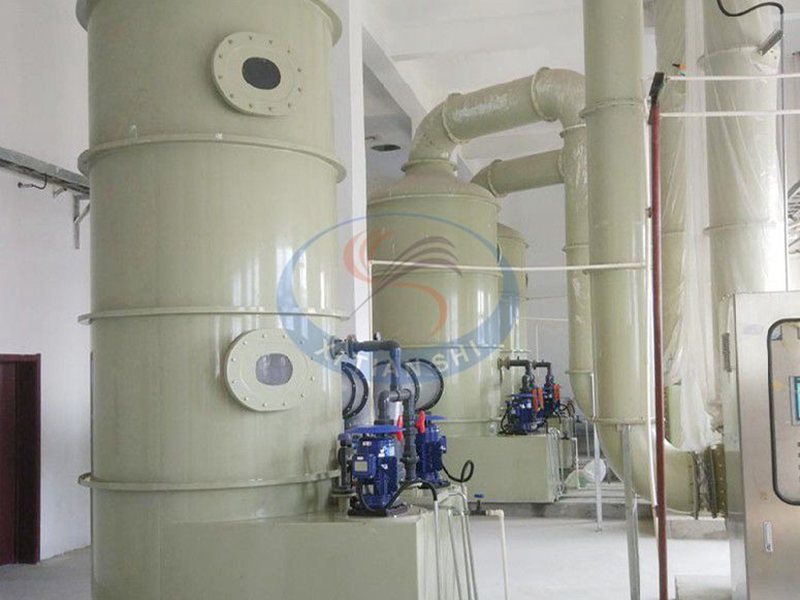

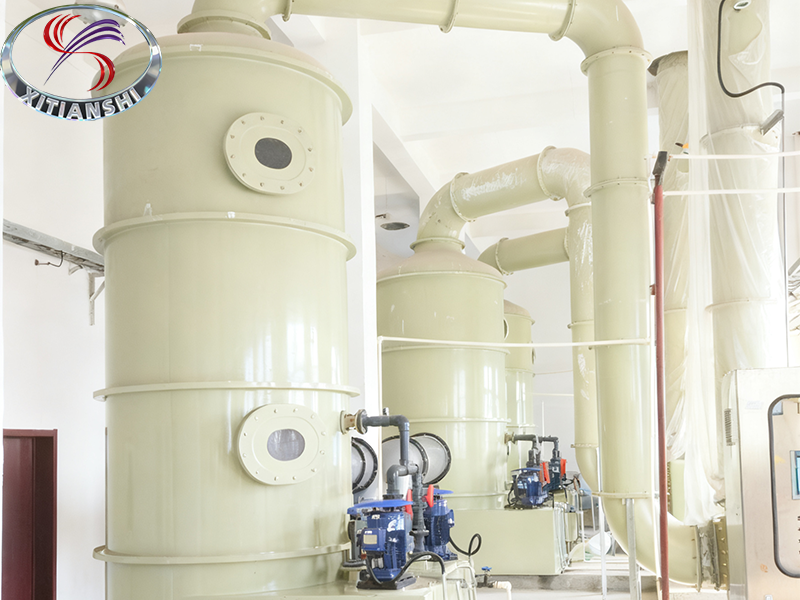

Laboratory Acid Mist Scrubber Tower

The Laboratory Acid Mist Scrubber Tower is a compact, high-efficiency air purification device designed to remove acid fumes, harmful gases, and particulates generated during chemical experiments and laboratory testing. It is widely used in chemical laboratories, research institutes, and testing centers to maintain safe and compliant indoor air quality.


Availability:



Inquire

Laboratory Acid Mist Scrubber Tower Acid Fume Purification Tower for Laboratories Lab-Scale Acid Mist Exhaust Scrubber Acid Fume Scrubber for Laboratories Laboratory Acid Mist Scrubber

Detail Information

Core Advantages

Product Description

Place Of Origin:	CHINA
Processing Capacity:	1200~30000 M3/H
Supply Ability:	50 Sets Per 3 Months
Material:	PP/FRP
Purifying Rate:	>90%
Packaging Details:	Pallets
Highlight:	Acid Mist Absorption Tower, Acid Mist Purification Tower, Purification Tower 30000 M3/H

Laboratory Acid Mist Scrubber Tower

Working Principle:

The system draws in contaminated air through a fan and directs it into the purification tower. Inside the tower, a neutralizing solution (typically alkaline) is sprayed in a counter-current direction, effectively removing acid mist (HCl, H₂SO₄, HNO₃) and other corrosive gases. Clean air is then released after passing through a demister and exhaust outlet.

Key Features:

Compact design ideal for laboratory space
Over 95% removal efficiency for acid fumes
Made from corrosion-resistant materials (PP, PVC, FRP)
Quiet operation with low energy consumption
Optional HEPA or activated carbon post-filtration
Easy installation and maintenance

Applications:

University and institutional chemistry labs
Industrial chemical analysis laboratories
Battery R&D labs
Metallurgical and pharmaceutical testing labs
Acid gas exhaust from fume hoods and glove boxes

Customization Available:

Tower size and flow rate
Material selection based on chemical use
Integration with lab ventilation systems
Digital monitoring options

1. Description of Laboratory Acid Mist Scrubber Tower

Laboratory Acid Mist Scrubber Tower

Number	Item	Material	Remarks
1	The maintenance port	PP/PVC	can be used as a viewing window
2	Spray port	PP/PVC
3	tower body	PP
4	filler inlet and outlet	PP/PVC	can be used as a viewing window
C	water inlet	PP
6	reservoir	PP
7	overflow port	PP
8	circulating water outlet	PP
9	sewage outlet	PP
10	air inlet	PP

2. Main product models

Model	Blowing rate M3/H	φ	φ1	φ2	H1	H	Purifying rate >90%	Recommended water pump
XTS-500	1200	500	200	800	1200	3500	>90%	25FP-8
XTS-600	2000	600	200	1000	1200	3500	>90%	25FP-8
XTS-700	3000	700	300	1000	1400	4000	>90%	32FP-11
XTS-800	4000	800	300	1200	1400	4000	>90%	32FP-11
XTS-1000	5000	1000	400	1400	1400	4500	>90%	40FP-18
XTS-1200	6000	1200	450	1600	1600	4500	>90%	40FP-18
XTS-1400	8000	1400	500	1800	1600	5000	>90%	50FP-22
XTS-1600	10000	1600	600	2000	1800	5000	>90%	50FP-22
XTS-1800	15000	1800	700	2200	2000	5500	>90%	50FP-22
XTS-2000	20000	2400	800	2400	2200	5500	>90%	65FP-26
XTS-2200	25000	2600	1000	2600	2500	6000	>90%	65FP-26
XTS-2500	30000	2800	1000	2800	2500	6000	>90%	65FP-26

3. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

4. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem

Any doubt please contact us.
