Product Category

Electrostatic Oil Mist Collector

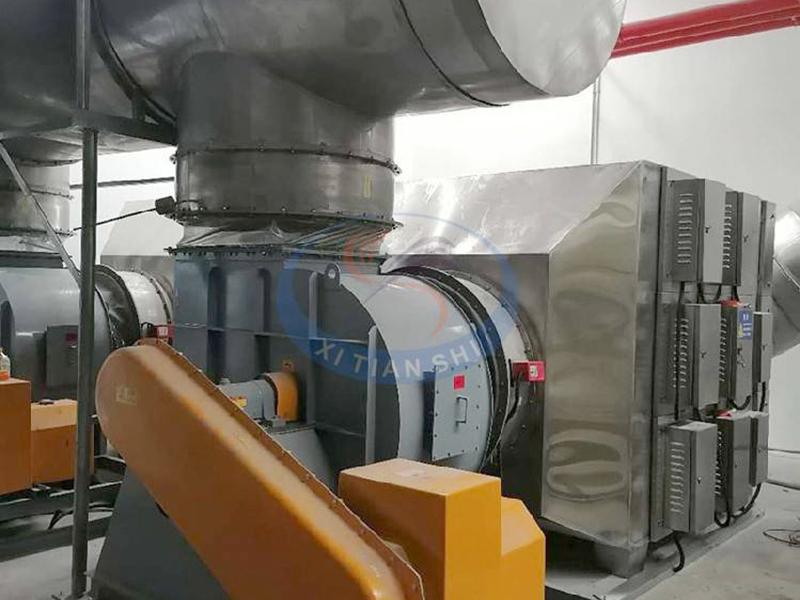

The Electrostatic Oil Mist Collector is a high-performance air purification device designed to remove oil mist, coolant fog, and micro-particulate fumes generated during CNC machining, milling, turning, and metal cutting. It uses electrostatic precipitation (ESP) technology to capture and separate fine mist particles from the air, improving workshop air quality and protecting both workers and equipment.


Availability:



Inquire

Acid Mist Purification Tower Electrostatic Precipitator for Oil Mist Oil Mist Electrostatic Purification System Electrostatic Oil Fume Filter

Detail Information

Core Advantages

Product Description

Place Of Origin:	CHINA
Processing Capacity:	1200~30000 M3/H
Supply Ability:	50 Sets Per 3 Months
Material:	PP/FRP
Purifying Rate:	>90%
Packaging Details:	Pallets
Highlight:	Purification Tower 30000 M3/H

The system works by charging the oil mist particles and collecting them on oppositely charged plates. It can efficiently remove particles as small as 0.01μm, with purification rates of over 98%.

Key Features:

High-efficiency removal of oil mist, smoke, and fine particles
No filter replacement needed – washable electrostatic modules
Energy-efficient and low noise design
Suitable for continuous operation in harsh industrial environments
Modular design – available in multiple airflow capacities
Easy to install on CNC machines, production lines, or duct systems

Applications:

CNC machining centers
Milling, turning, drilling, and grinding workshops
Lubricant or coolant-based production environments
Precision metalworking and mold manufacturing
Automotive and aerospace component factories

1. Description of Electrostatic Oil Mist Collector

Number	Item	Material	Remarks
1	The maintenance port	PP/PVC	can be used as a viewing window
2	Spray port	PP/PVC
3	tower body	PP
4	filler inlet and outlet	PP/PVC	can be used as a viewing window
C	water inlet	PP
6	reservoir	PP
7	overflow port	PP
8	circulating water outlet	PP
9	sewage outlet	PP
10	air inlet	PP

2. Main product models

Model	Blowing rate M3/H	φ	φ1	φ2	H1	H	Purifying rate >90%	Recommended water pump
XTS-500	1200	500	200	800	1200	3500	>90%	25FP-8
XTS-600	2000	600	200	1000	1200	3500	>90%	25FP-8
XTS-700	3000	700	300	1000	1400	4000	>90%	32FP-11
XTS-800	4000	800	300	1200	1400	4000	>90%	32FP-11
XTS-1000	5000	1000	400	1400	1400	4500	>90%	40FP-18
XTS-1200	6000	1200	450	1600	1600	4500	>90%	40FP-18
XTS-1400	8000	1400	500	1800	1600	5000	>90%	50FP-22
XTS-1600	10000	1600	600	2000	1800	5000	>90%	50FP-22
XTS-1800	15000	1800	700	2200	2000	5500	>90%	50FP-22
XTS-2000	20000	2400	800	2400	2200	5500	>90%	65FP-26
XTS-2200	25000	2600	1000	2600	2500	6000	>90%	65FP-26
XTS-2500	30000	2800	1000	2800	2500	6000	>90%	65FP-26

3. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

4. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem

Any doubt please contact us.
