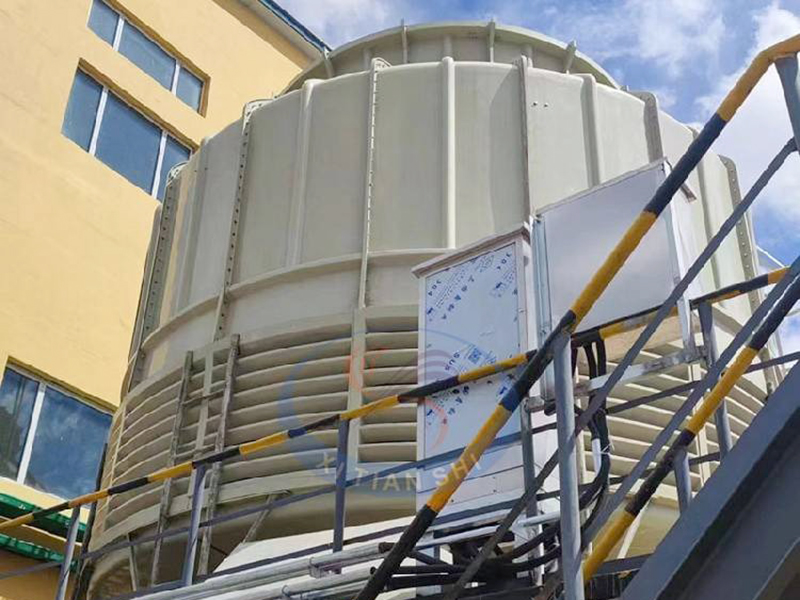

FRP Cooling Tower

The FRP Cooling Tower is a high-performance, corrosion-resistant cooling solution designed for industrial applications. Made from Fiberglass Reinforced Plastic (FRP), this cooling tower offers excellent durability, lightweight structure, and long service life, even in harsh environments.


Availability:



Inquire

FRP Cooling Tower Fiberglass Cooling Tower Industrial Cooling Tower Corrosion Resistant Cooling Tower Lightweight Cooling Tower Fiberglass Reinforced Plastic Cooling Tower

Detail Information

Product Description

Core Advantages

1. Description of FRP Cooling Tower

Parameter name	Parameter value
Square of cooling tower, m2	64
The hydraulic load (water flow), m3/hour - minimal	400
The hydraulic load (water flow), m3/hour - nominal	800
The hydraulic load (water flow), m3/hour - maximal	1200
Water pressure at the cooling tower input, MCE (kgf/cm2)	3÷15
Temperature difference Δt, °C	5,20
Thermal load at u=30°C, t=20°C, φ=40%, Megacalories/h (kW)	8000
Droplet entrainment, %	0,01
Water evaporation, from water consumption (average)	1,07
Diameter of the fan, mm	5000÷4500
Consumed power of electromotor, kW	37÷40
Rotation rate	250÷290
Noise level (10 meters from cooling tower), dB	85 dB
Dimension Sizes (length x wide x height), mm	8x8x6,9
Allowable temperature of the water at the cooling tower input, (t1), °C	Not more than 65
Branch pipe of water supply (byl), mm	400
u - the air temperature according to air dry bulb thermometer; t - the air temperature according to air wet bulb thermometer; φ - relative humidity of air.

2. Specification

Component	Material
Body	Hot dipped galvanized steel
Fan stack	FRP
Casing	FRP
Fill	PVC / PP (upon request)
Drift eliminator	PVC / PP (upon request)
Pipes	FRP
Nozzles	PP / ABS (upon request)
Air guides	PP / Galvanized steel
Fan instalation	PAG (blades), Al (hub)
Fan support	Hot dipped galvanized steel
Connecting elements	Cink Steel
Water tray	FRP
Fan protection	Cink Steel
Motor housing	Color coated steel

It is widely used in HVAC systems, power plants, chemical industries, manufacturing facilities, and other industrial sectors for efficient heat dissipation. With its low noise, energy-efficient design, and easy maintenance, the FRP Cooling Tower is an ideal choice for modern cooling requirements.

Product advantages

✔ Corrosion-resistant FRP structure, ideal for harsh environments
✔ High cooling efficiency and stable operation
✔ Lightweight, durable, and long service life
✔ Low noise design
✔ Easy installation and maintenance
✔ Available in multiple models and customizable sizes
✔ Suitable for industrial, commercial, and HVAC applications

Tower Structure

The tower’s framework is constructed using pultruded FRP beams and columns, ensuring a lightweight yet durable structure with outstanding corrosion resistance and mechanical strength. This robust framework supports all components securely while maintaining long-term stability under harsh environmental conditions.

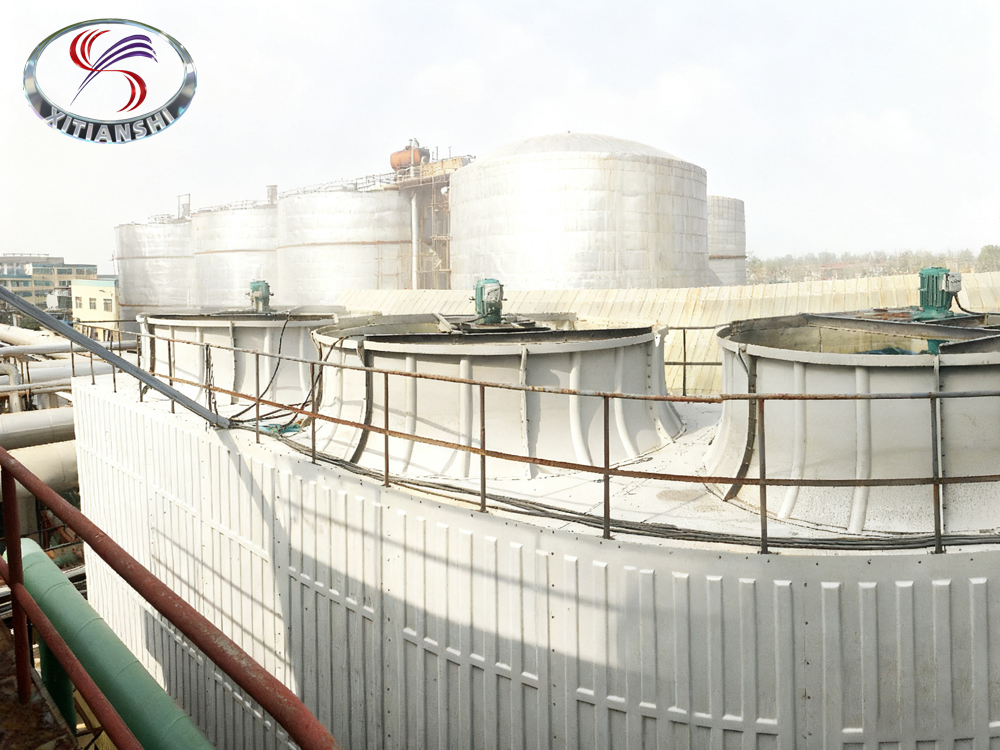

Cooling Tower for Chemical Plants

Mechanical Equipment

The mechanical system—comprising the fan, gearbox, drive shaft, and motor—ensures smooth and efficient air circulation throughout the cooling tower. Each component is engineered for optimal performance, featuring low vibration, high energy efficiency, and reliable continuous operation.

Cooling Tower Film Fills

The cooling fills, made of high-quality PVC or polypropylene, are carefully designed to optimize air–water interaction. By increasing the surface area for heat exchange, the fills allow water to form thin, uniform films that accelerate cooling and significantly improve thermal performance and overall system efficiency.
