Product Category

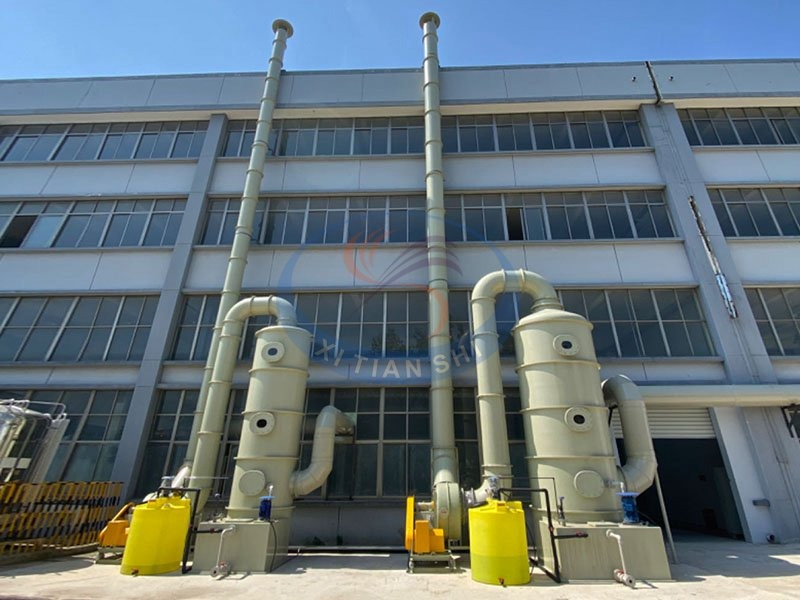

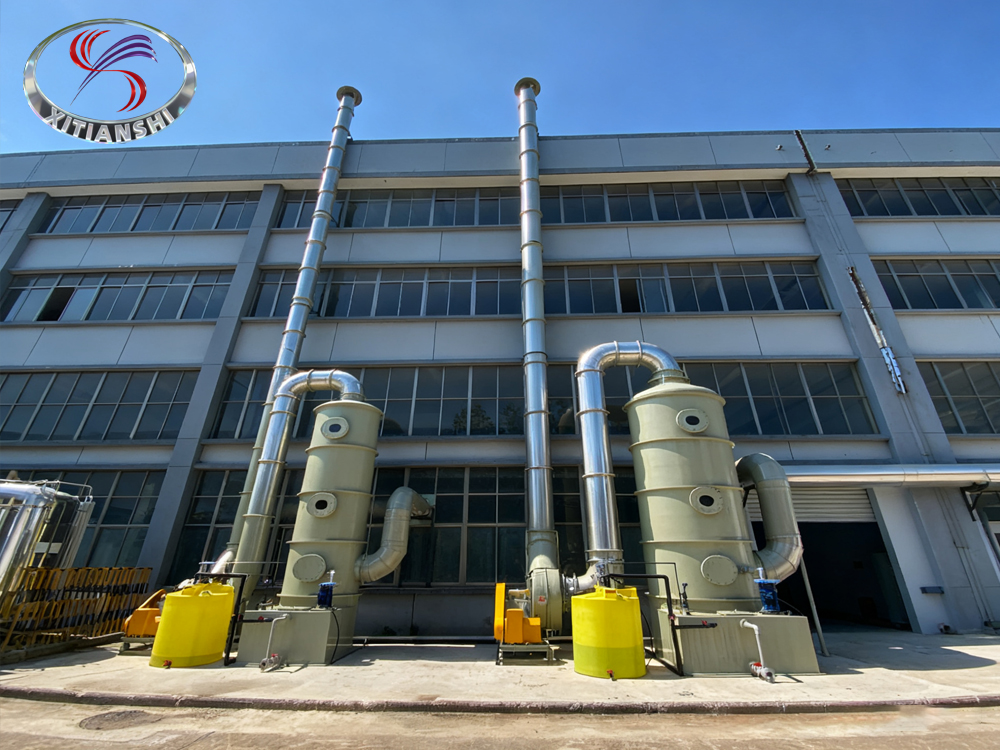

Acid and Alkali Fume Scrubber

The Acid and Alkali Fume Scrubber is a wet scrubber system designed to neutralize and remove acidic and alkaline gases from industrial exhaust. It uses chemical absorption through alkaline or acidic washing solutions to eliminate harmful pollutants such as HCl, H₂SO₄, NH₃, HF, NOₓ, and SO₂.


Availability:



Inquire

Acid and Alkali Fume Scrubber Acid-Alkali Gas Scrubbing Tower Corrosive Gas Wet Scrubber Acid-Base Exhaust Gas Purification Tower

Detail Information

Core Advantages

Product Description

Place Of Origin:	CHINA
Processing Capacity:	1200~30000 M3/H
Supply Ability:	50 Sets Per 3 Months
Material:	PP/FRP
Purifying Rate:	>90%
Packaging Details:	Pallets
Highlight:	Acid Mist Absorption Tower, Acid Mist Purification Tower, Purification Tower 30000 M3/H

The system features a packed tower design for maximum gas-liquid contact efficiency, and is widely used in chemical plants, electroplating workshops, semiconductor manufacturing, and laboratory exhaust systems.

Key Features:

Dual treatment for acid and alkali gases
Removal efficiency ≥ 95%
Constructed with corrosion-resistant materials (FRP, PP, PVC)
Optional online pH monitoring and automatic dosing system
Low pressure drop, stable operation, and long service life
Customizable tower size and flow rate based on your application

Applications:

Chemical production and reaction exhaust
Electroplating and surface treatment workshops
Semiconductor and photovoltaic industries
Laboratories and research centers
Waste gas treatment for neutralization stations

1. Description of Acid and Alkali Fume Scrubber

Number	Item	Material	Remarks
1	The maintenance port	PP/PVC	can be used as a viewing window
2	Spray port	PP/PVC
3	tower body	PP
4	filler inlet and outlet	PP/PVC	can be used as a viewing window
C	water inlet	PP
6	reservoir	PP
7	overflow port	PP
8	circulating water outlet	PP
9	sewage outlet	PP
10	air inlet	PP

2. Main product models

Model	Blowing rate M3/H	φ	φ1	φ2	H1	H	Purifying rate >90%	Recommended water pump
XTS-500	1200	500	200	800	1200	3500	>90%	25FP-8
XTS-600	2000	600	200	1000	1200	3500	>90%	25FP-8
XTS-700	3000	700	300	1000	1400	4000	>90%	32FP-11
XTS-800	4000	800	300	1200	1400	4000	>90%	32FP-11
XTS-1000	5000	1000	400	1400	1400	4500	>90%	40FP-18
XTS-1200	6000	1200	450	1600	1600	4500	>90%	40FP-18
XTS-1400	8000	1400	500	1800	1600	5000	>90%	50FP-22
XTS-1600	10000	1600	600	2000	1800	5000	>90%	50FP-22
XTS-1800	15000	1800	700	2200	2000	5500	>90%	50FP-22
XTS-2000	20000	2400	800	2400	2200	5500	>90%	65FP-26
XTS-2200	25000	2600	1000	2600	2500	6000	>90%	65FP-26
XTS-2500	30000	2800	1000	2800	2500	6000	>90%	65FP-26

3. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

4. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem

Any doubt please contact us.
