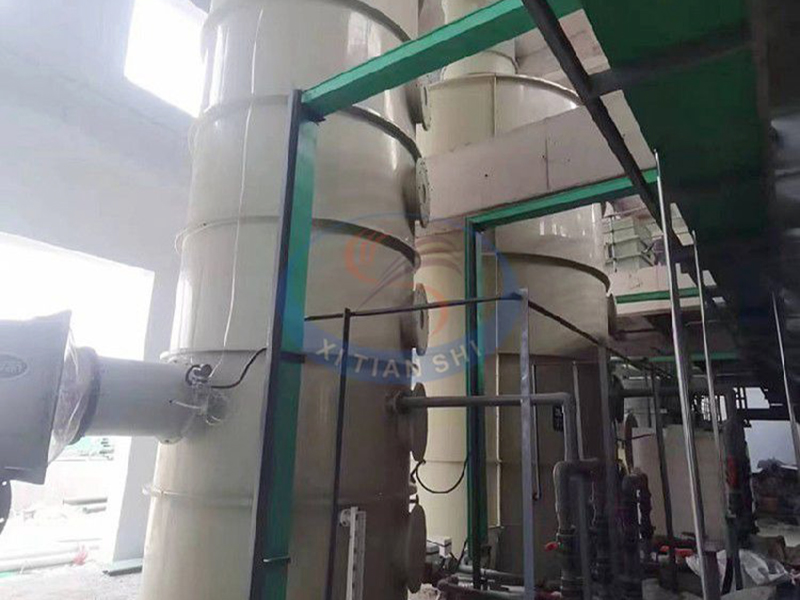

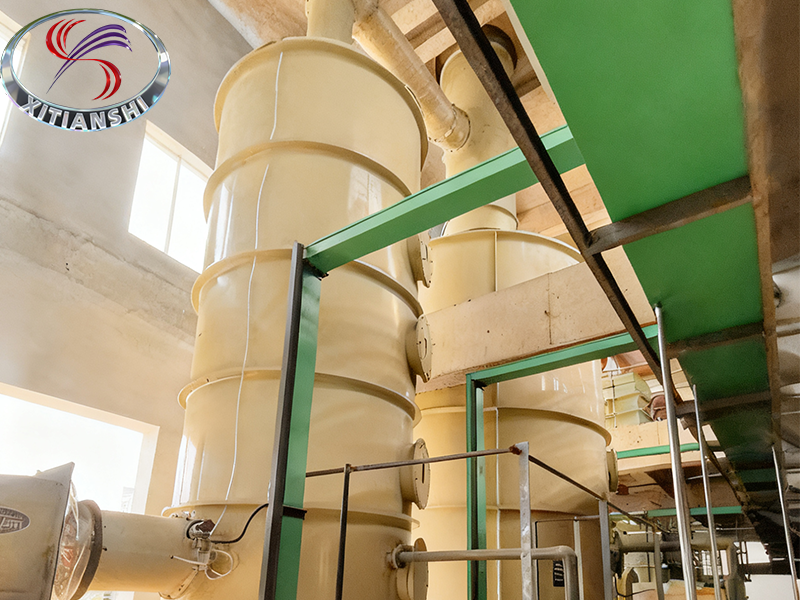

Electrolytic & Purified Solution Acid Mist Scrubber

Electrolytic & Purified Solution Acid Mist Scrubber

This acid mist scrubber is specially engineered to treat corrosive fumes generated during electrolytic processes and purified acid solution circulation systems. It efficiently removes hazardous gases such as sulfuric acid mist (H₂SO₄), hydrochloric acid (HCl), and chlorine gas (Cl₂) to protect the working environment, equipment, and meet air emission standards.


Availability:



Inquire

Electrolytic & Purified Solution Acid Mist Scrubber Acid Fume Scrubber for Electrolysis and Purification Circuits Electrolyte Acid Mist Scrubbing Tower Electroplating Exhaust Gas Scrubber

Detail Information

Core Advantages

Product Description

Place Of Origin:	CHINA
Processing Capacity:	1200~30000 M3/H
Supply Ability:	50 Sets Per 3 Months
Material:	PP/FRP
Purifying Rate:	>90%
Packaging Details:	Pallets
Highlight:	Acid Mist Absorption Tower, Acid Mist Purification Tower, Purification Tower 30000 M3/H

Contaminated air is pulled into the scrubber tower, where it is neutralized by alkaline spray solutions through multiple layers of packing or nozzles. Acid gases are chemically absorbed, and the clean air is demisted before being safely discharged through the fan system.

Key Features:

️ Dual-purpose design for electrolysis tanks and purified acid pipelines
️ Corrosion-resistant construction using PP, FRP, or PVC
Continuous circulation system with automatic dosing (optional)
High removal rate (>95%) for sulfuric and hydrochloric acid vapors
Modular design, easy installation and low maintenance
⚙️ Customizable for airflow rates from 1,000 to 100,000 m³/h

Applications:

Non-ferrous metal electrorefining (copper, zinc, nickel)
Plating and surface treatment lines
Acid purification systems
Battery acid mixing and storage
Chemical and fertilizer industries

Optional Add-Ons:

Activated carbon final filter
Explosion-proof exhaust fan
PLC touchscreen control system
Real-time pH and conductivity monitoring

1. Description of Electrolytic & Purified Solution Acid Mist Scrubber

Number	Item	Material	Remarks
1	The maintenance port	PP/PVC	can be used as a viewing window
2	Spray port	PP/PVC
3	tower body	PP
4	filler inlet and outlet	PP/PVC	can be used as a viewing window
C	water inlet	PP
6	reservoir	PP
7	overflow port	PP
8	circulating water outlet	PP
9	sewage outlet	PP
10	air inlet	PP

2. Main product models

Model	Blowing rate M3/H	φ	φ1	φ2	H1	H	Purifying rate >90%	Recommended water pump
XTS-500	1200	500	200	800	1200	3500	>90%	25FP-8
XTS-600	2000	600	200	1000	1200	3500	>90%	25FP-8
XTS-700	3000	700	300	1000	1400	4000	>90%	32FP-11
XTS-800	4000	800	300	1200	1400	4000	>90%	32FP-11
XTS-1000	5000	1000	400	1400	1400	4500	>90%	40FP-18
XTS-1200	6000	1200	450	1600	1600	4500	>90%	40FP-18
XTS-1400	8000	1400	500	1800	1600	5000	>90%	50FP-22
XTS-1600	10000	1600	600	2000	1800	5000	>90%	50FP-22
XTS-1800	15000	1800	700	2200	2000	5500	>90%	50FP-22
XTS-2000	20000	2400	800	2400	2200	5500	>90%	65FP-26
XTS-2200	25000	2600	1000	2600	2500	6000	>90%	65FP-26
XTS-2500	30000	2800	1000	2800	2500	6000	>90%	65FP-26

3. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

4. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem

Any doubt please contact us.
