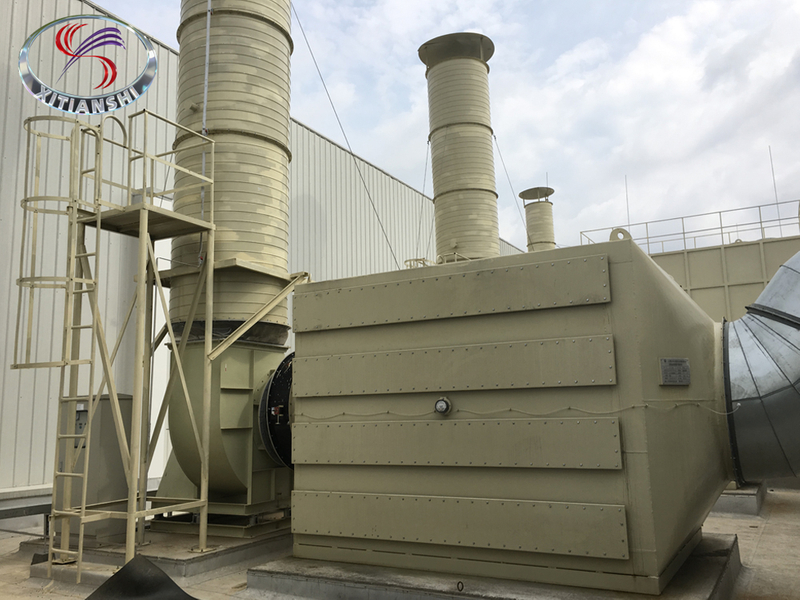

Activated Carbon Adsorption Tower

The Activated Carbon Adsorption Tower is a highly effective air purification system designed to remove volatile organic compounds (VOCs), odors, harmful gases, and trace pollutants from industrial exhaust streams. Using high-quality activated carbon with large surface area and strong adsorption capacity, this system ensures high purification efficiency and stable long-term performance.


Availability:



Inquire

Activated Carbon Adsorption Tower Activated Carbon Filter Tower VOC Removal Carbon Adsorber Industrial Activated Carbon Air Purification System

Detail Information

Core Advantages

Product Description

Place Of Origin:	CHINA
Processing Capacity:	1200~30000 M3/H
Supply Ability:	50 Sets Per 3 Months
Material:	PP/FRP
Purifying Rate:	>90%
Packaging Details:	Pallets
Highlight:	Purification Tower 30000 M3/H

It is widely used in chemical plants, printing facilities, painting workshops, pharmaceutical manufacturing, solid waste stations, and other industries with low to medium concentration of organic pollutants.

Key Features:

Efficient adsorption of VOCs, H₂S, NH₃, formaldehyde, benzene, etc.
Easy replacement of activated carbon
Modular design, customizable flow rates and tower sizes
Low operating cost, long service life
FRP, stainless steel, or carbon steel housing available
Optional pre-filtration and post-filtration units for complete treatment

Applications:

VOC removal in paint spray booths
Odor treatment in solid waste and wastewater plants
Exhaust purification in chemical and pharmaceutical industries
Air filtration for printing and coating lines
Laboratory fume and solvent vapor treatment

1. Description of Activated Carbon Adsorption Tower

Number	Item	Material	Remarks
1	The maintenance port	PP/PVC	can be used as a viewing window
2	Spray port	PP/PVC
3	tower body	PP
4	filler inlet and outlet	PP/PVC	can be used as a viewing window
C	water inlet	PP
6	reservoir	PP
7	overflow port	PP
8	circulating water outlet	PP
9	sewage outlet	PP
10	air inlet	PP

2. Main product models

Model	Blowing rate M3/H	φ	φ1	φ2	H1	H	Purifying rate >90%	Recommended water pump
XTS-500	1200	500	200	800	1200	3500	>90%	25FP-8
XTS-600	2000	600	200	1000	1200	3500	>90%	25FP-8
XTS-700	3000	700	300	1000	1400	4000	>90%	32FP-11
XTS-800	4000	800	300	1200	1400	4000	>90%	32FP-11
XTS-1000	5000	1000	400	1400	1400	4500	>90%	40FP-18
XTS-1200	6000	1200	450	1600	1600	4500	>90%	40FP-18
XTS-1400	8000	1400	500	1800	1600	5000	>90%	50FP-22
XTS-1600	10000	1600	600	2000	1800	5000	>90%	50FP-22
XTS-1800	15000	1800	700	2200	2000	5500	>90%	50FP-22
XTS-2000	20000	2400	800	2400	2200	5500	>90%	65FP-26
XTS-2200	25000	2600	1000	2600	2500	6000	>90%	65FP-26
XTS-2500	30000	2800	1000	2800	2500	6000	>90%	65FP-26

3. Packaging & Shipping

We can pack it by pallet, or according to the customers' specific requirements.

Port: Shanghai/Ningbo

4. Our Services

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Correct technological process control
(4) Remove simple problem

Any doubt please contact us.
