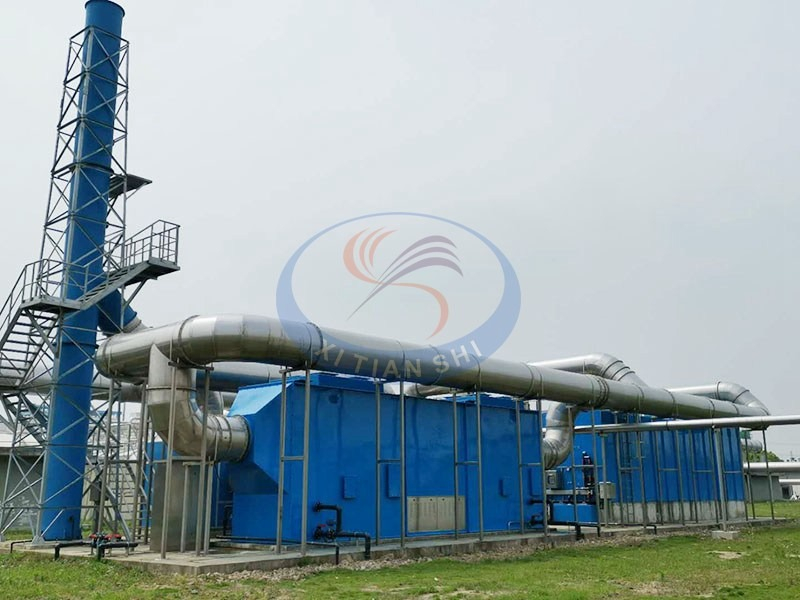

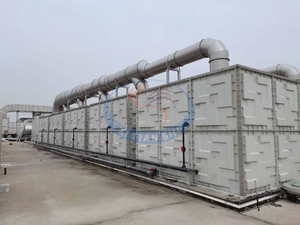

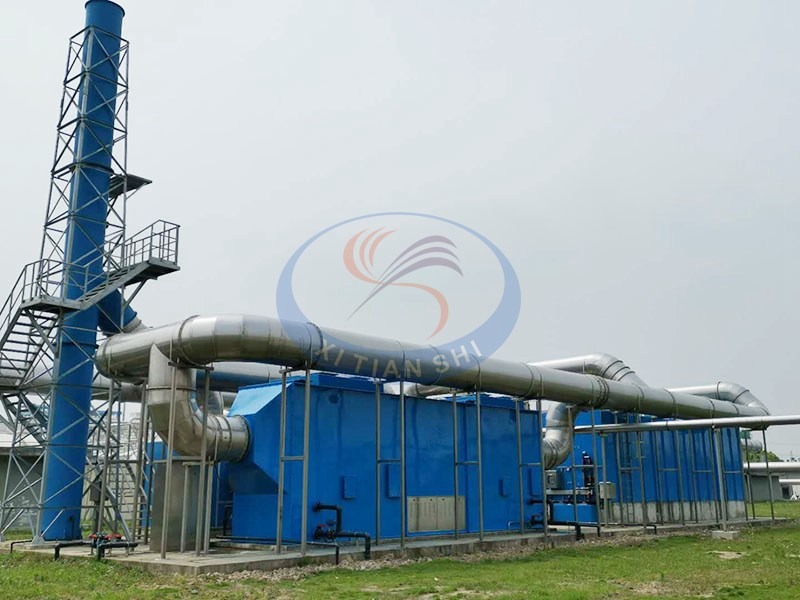

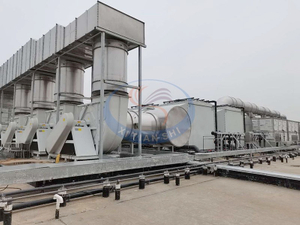

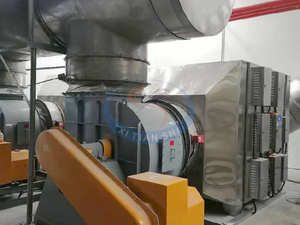

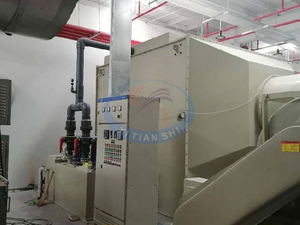

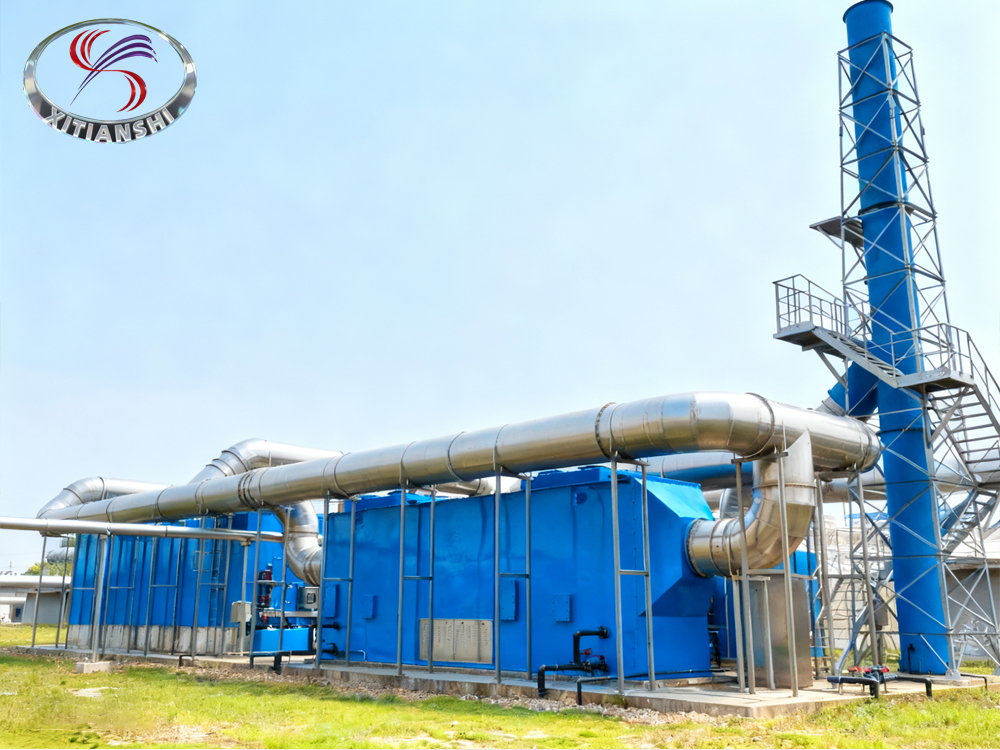

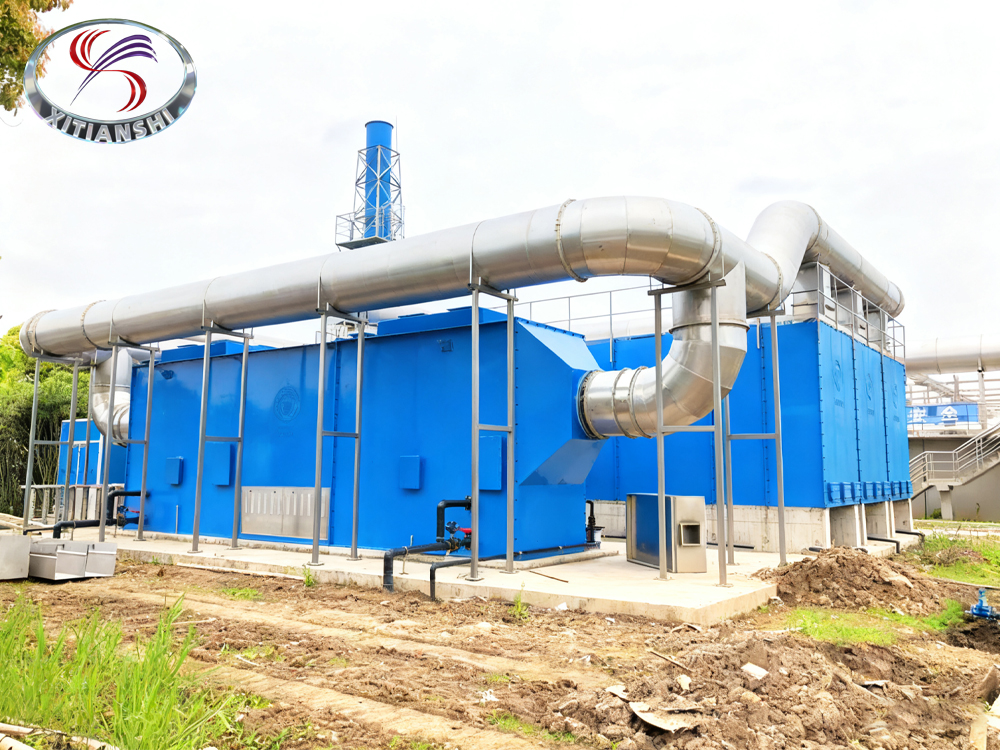

Horizontal Wet Scrubber

inorganic acids: HCl (saline), HF (plastic), H2S04 (sulfuric), HN03 (nitric), H3P04 (phosphoreal), etc.

amines: (tri-) (di-) (mono-) methylamines, (tri-) (di-) (mono-) ethylamines, etc.

aldehydes, mercaptans, ozone, odors, and malodorous substances

acidic oxides: SO2 (sulfur dioxide), NO2 (nitrogen dioxide), SO3, CrO3, etc.

soluble salts: BaCl2 (barium chloride), NaCl (common salt), NaNO2 (sodium nitrate), KaNO3 (potassium nitrate), and other salts soluble in water

H2S (hydrogen sulfide), CH2O (formaldehyde)

organic acids: HCOOH (aminoformic), CH3COOH (acetic), etc.

spirits: methyl, ethyl, dimethyl, etc.

hydrogen cyanide HCN

alkalis: NaOH (sodium hydroxide or “caustic soda), KOH (potassium hydroxide or “caustic soda) etc.

Cl2 (chlorine), Br2 (bromide)

ethers: ethyl acetate, methyl acetate, dimethyl, diethyl, etc.

phenols

NH3 (ammonium)

Performance

up to 180000 cfm (305000 m³/h)

Aerodynamic resistance

300

Power consumption without additional equipment, kW

1 or more depending on the wet scrubber's performance

Temperature range that the polypropylene wet scrubber can be used under

From 40 to 175 ˚F (From 5 to 80 ˚C)

Temperature range that a steel wet scrubber can operate under

From 40 to 570 ˚F (From 5 to 300 ˚C)

Gas concentration at the scrubber inlet

10000 mg/m³

Dust concentration at the scrubber inlet

500 mg/m³

Gas cleaning efficiency

- for particles 5 µm 99,9% depending on the gas and the solution used for irrigation and the gas flow temperature
- for water soluble gases up to 99.9%
For information about the removal of gas or mist of any other type, please contact us with specific information about the gas.

The efficiency of the scrubber in its standard configuration (example)

HCl-NaOH — 99.5%
HF-H2O — 99.5%
NH3-H2O — 99.9%
Cl2-NaOH — 98%
